Meet the new SJ-740 large-format digital printer. With dual staggered print heads and a rigid new industrial design, productivity and quality are built in. So are big-time savings. The SJ-740 runs with new SinoColor ink that costs up to 35% less than the competition. The result? High-volume, low-maintenance printing and bold, exciting colors with higher profit margins.

overview images

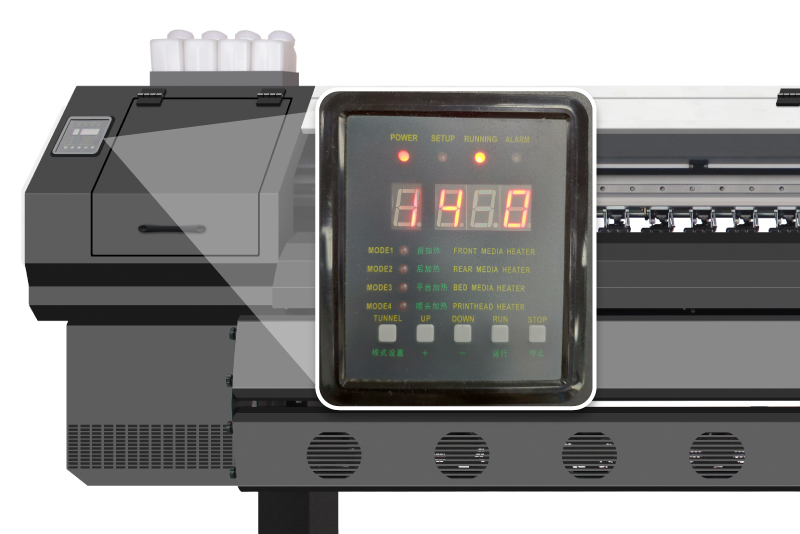

Integrated Temperature Control

Why it matters : Control the front, middle and rear heater in one place. Integrated heater controller have less fault than separate ones.

overview images

Big Functional Control Panel

Adopts the latest program Intelligent Error Auto-Detection boards, it can guide user to find solution very quickly.

overview images

Wide Pinch Roller

Why it matters : Wide pinch roller keeps smooth movement of the media. And it has proper pressure to ensure accurate media step while not make any footprint of the pinch roller.

overview images

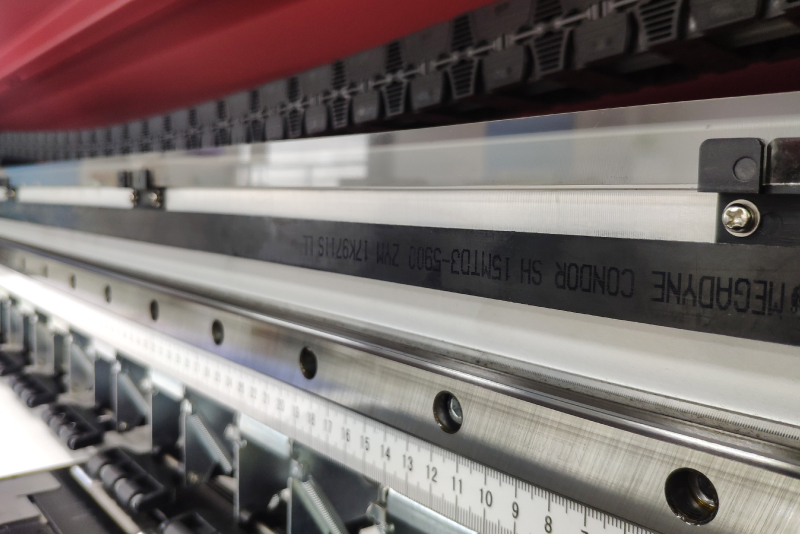

Megadyne Belt. High quality. Durable

overview images

Integrated Take Up System (Optional)

It offers adjustable roll widths, making it suitable for various sized media rolls and applications

overview images

IGUS Drag Chain from Germany

Why it matters : IGUS drag chain itself is a guarantee of quality, takes the printer stability to a new level.

overview images

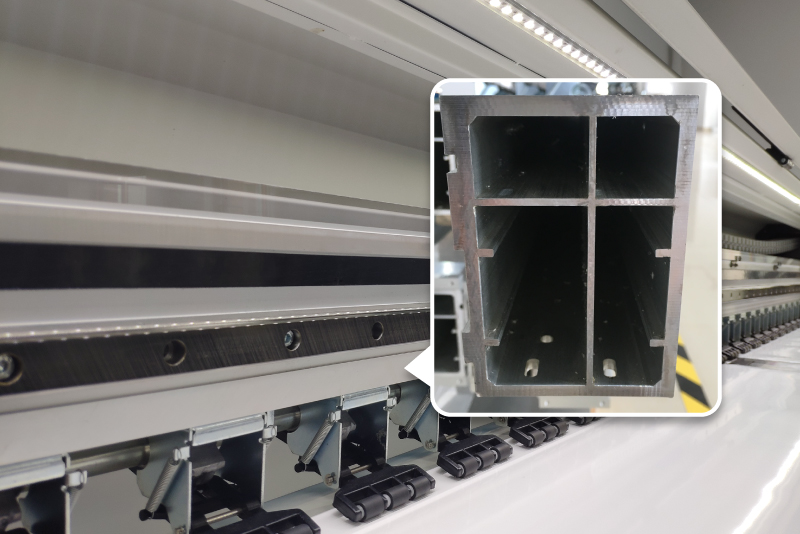

Integrated Aluminous Carriage Girder

Why it matters : It’s the girder on which placed the guide rail. It’s made of aluminum to ensure very high accuracy for the guide rail and carriage.

overview images

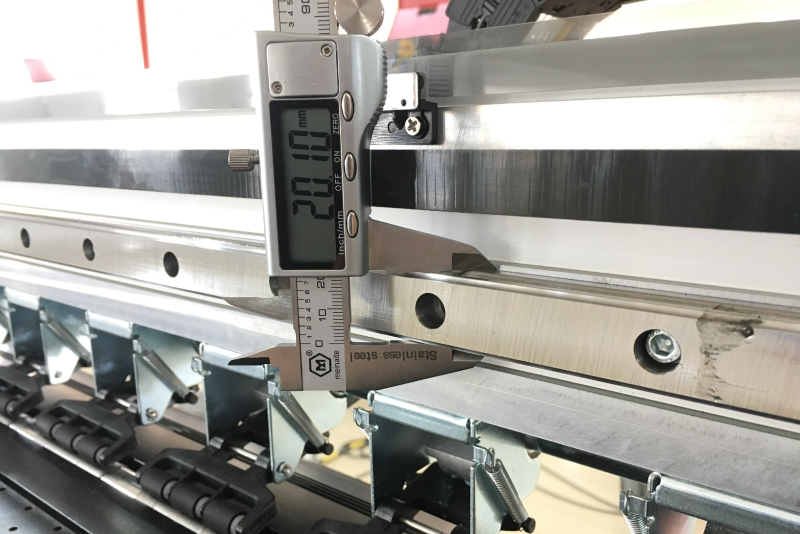

Guide Rail with a Increased Width of 20mm

Why it matters : Only high quality wide guide rail supports carriage move back and forth for million times without any issue. And it’s the key part that ensures the accuracy of the carriage movement.

overview images

Steel Main Girder

Why it matters : Main girder is made of steel so that it won’t be out of shape in very long term. It also increased the printer weight and structure stability.

overview images

Aluminum Moulding Frame

Increase machine accuracy and extend machine durability

overview images

Double Slider

Why it matters : Since the double heads printer has wider carriage, double slider is necessary to ensure stable movement of the carriage.

overview images

Variable Dot Print Technology

Permitting the printer to provide smooth gradations, exceptional solid colors and optimum image quality in all print modes

overview images

with the LED lamp strip, uses could check out the print result more easily

应用

application images
application images
application images
application images
application images
application images
型号 SJ-740 SJ-740i SJ-740C
喷头 2个爱普生Dx7 / DX5 1个爱普生Dx7 / DX5 2个爱普生Dx8
打印精度 1440dpi
耗材 宽度 1.8 m
种类 灯箱布、车贴、单透、条幅布、玻璃贴膜、网格布等
速度 3 Pass 52 sqm/h 26 sqm/h 54 sqm/h / 27 sqm/h
4 Pass 38 sqm/h 19 sqm/h 40 sqm/h / 20 sqm/h
6 Pass 24 sqm/h 12 sqm/h 26 sqm/h / 13 sqm/h
墨水颜色 CMYK CMYK CMYK / CMYKLcLm
墨水种类 弱溶剂墨水
墨滴 1.5-21pl可变mo’di
清洗 自动清洗、闪喷、封喷头
收放布 自动收放布系统
环境 温度: 20-28°C, 湿度: 40-60%
软件 UltraPrint / PhotoPrint
输入接口 USB2.0
电源 50/60HZ, 110/220V, 2000W
尺寸 & 重量 机器 长3100 宽780 高1500 (mm) / 280 KG
包装 长3160 宽960 高760 (mm) / 400 KG
